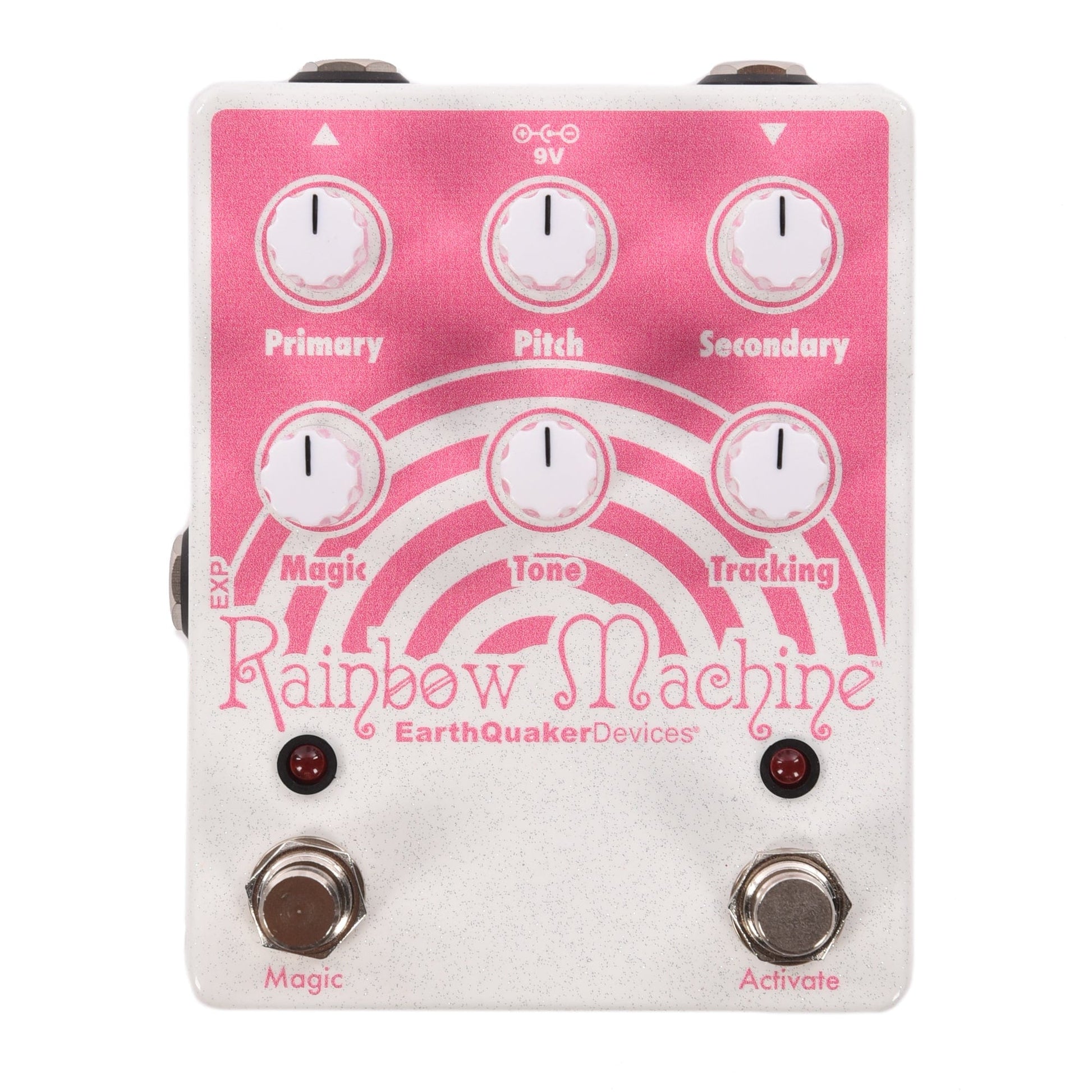

rainbow pedal Earthquaker Devices Rainbow Machine V2 Polyphonic Pitch Mesmerizer Pedal White Sparkle

rainbow pedal Earthquaker Devices Rainbow Machine V2 Polyphonic Pitch Mesmerizer Pedal White SparkleThis one is for experimenters, adventurists, and noisemakers. Totally not for purists and or tone hounds. There are no natural sounds that come from this box. It takes modern DSP and uses it as a tool of future past to create real time pitch shifting using digital oscillators. The Rainbow Machine has been completely re imagineered from the pixie dust covered ground up to be more versatile, twice as loud as the original, with an extended delay time,

This one is for experimenters, adventurists, and noisemakers. Totally not for purists and/or tone hounds. There are no “natural sounds” that come from this box. It takes modern DSP and uses it as a tool of future past to create real-time pitch shifting using digital oscillators.

The Rainbow Machine has been completely re-imagineered from the pixie dust-covered ground up to be more versatile, twice as loud as the original, with an extended delay time, deeper chorus tones, silent flexiswitch footswitches on both the Activate and Magic functions, and most of all, more Magic.

The Rainbow Machine is built around a DSP pitch warping engine that’s designed to be slightly imperfect; colored with digital remnants of the cosmic dust we’ve picked up across the multiverse. That is to say it’s a cold digital beast made to pretend it has feelings.

Flexi-Switch Technology

• This device features Flexi-Switch Technology! This relay-based, true bypass switching style allows you to simultaneously use momentary and latching style switching.
• For standard latching operation, tap the footswitch once to activate the effect and then tap again to bypass.

• For momentary operation, hold the footswitch down for as long as you’d like to use the effect. Once you release the switch the effect will be bypassed.

• Since the switching is relay based, it requires power to pass signal.

Power
This device takes a standard 9 volt DC power supply with a 2.1mm negative center barrel. We always recommend pedal-specific, transformer-isolated wall-wart power supplies or multiple isolated-output supplies. Pedals will make extra noise if there is ripple or unclean power. Switching-type power supplies, daisy chains and non-pedal specific power supplies do not filter dirty power as well and let through unwanted noise. DO NOT RUN AT HIGHER VOLTAGES!

Dimensions: 4.65 x 3.65 x 2.25 in. (118 x 93 x 57 mm) with knobs
Current Draw: 68 mA
Input Impedance: 1 MΩ
Output Impedance: <1 kΩ
Expression Jack: This is an expression pedal control jack for the pitch. The Pitch control is defeated when an expression pedal is inserted. We recommend the Moog EP-2 or EP-3 for use with the Rainbow Machine and cannot guarantee that any others will work.
